EL-SAC18-3FSBNC
- Category: Best air conditioner in India
- MRP: ₹ 48990
Model Number: EL-SAC18-3FSBNC Star: 3 Outdoor Unit: 20 inch Power supply: 220-240V/50HZ Cooling Capacity: 5100 W Condensor Pipe: COPPER
Product Description

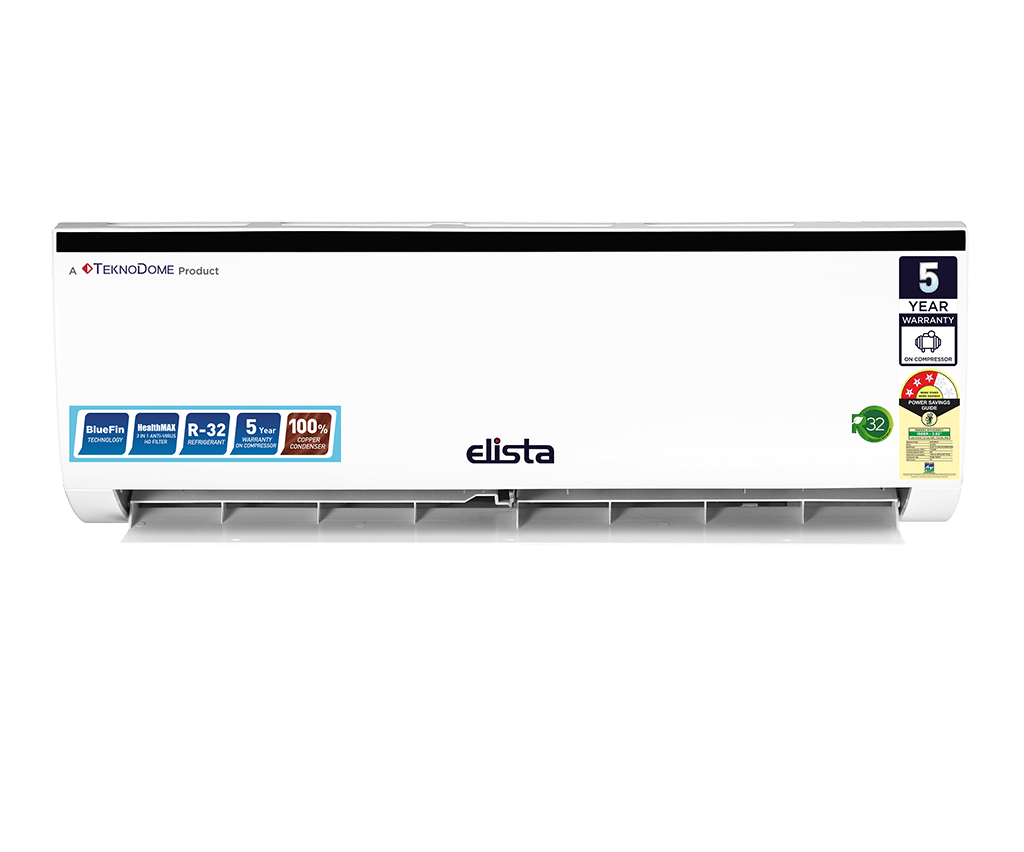

EL-SAC18-3FSBNC
Escape the heat and step into pure comfort with Elista Air Conditioners. Designed for effortless cooling, they create a soothing environment where you can relax, work, or unwind without distractions. Elevate your everyday moments with the perfect blend of luxury and refreshing comfort.
| Model | 1.5 Ton Fix Speed | |||
| Factory Model | 18K 3 Star FS | |||
| ELISTA MODEL | EL-SAC18-3FSBNC | |||
| Climate type | T1 | |||
| STAR | 3 | |||
| Indoor unit | Facia B (Blue Strip) | |||
| CONDENSOR PIPE | COPPER | |||
| FINS | BLUE | |||
| Outdoor Unit | 20 inch | |||
| Power supply | Ph-V-Hz | 220-240V/50HZ | ||
| Type | Split | |||
| Power Supply Mode | Indoor | |||
| BTU/Hr | 18000 | |||
| Cooling Capacity | W | 5100 | ||
| ISEER | 4 | |||
| Compressor | Model | GSL165UY-C7EU7 | ||
| Type | Rotary | |||
| Brand | Highly | |||
| Indoor unit | Motor | Power output | w | 35 |
| Brand | Welling( ZKFP-35-8-123L) | |||
| Capacitor | uF | NA | ||
| Motor speed (TU/Hi/Mi/Lo) | RPM | 1500/1350/1150/1000 | ||
| Evaporator | a.Number of rows | 2 | ||
| b. Number of HP | 18 | |||
| c.Tube pitch(a)x row pitch(b) | mm | 21x12.7 | ||
| d.Fin material | Hydrophilic (Blue) | |||
| e.Tube outside dia.and type | mm | Ф7 | ||
| f.Coil length x height x width | mm | 705*378*25.4 | ||
| Fan | Indoor fan Diameter | mm | Ф107.6*697 | |
| Indoor air flow | m3/h | 1100 | ||
| Unit dimension (W*H*D) | mm | 900*315*235 | ||
| Packing (W*H*D) | mm | 980*380*310 | ||
| Outdoor unit | Outdoor fan motor | Model | KFD 55H12L/UC-1198 | |
| Brand | Welling/PICL | |||
| output power | w | 54 | ||
| Capacitor | uF | 3 | ||
| Motor speed | Rpm | 900 | ||
| Fan | Diameter | mm | Ф440 | |
| No. of Blade | Pieces | 3 | ||
| Condenser | a.Number of rows | 2 | ||
| b. Number of HP | 26 | |||
| c.Tube pitch(a)x row pitch(b) | mm | 19.5*11.6 | ||
| d.Fin material | Bare | |||
| e.Tube outside dia.and type | mm | Ф5 | ||
| f.Coil length x height x width | mm | 821*507*23.2 | ||
| Unit dimension (W*H*D) | mm | 780*560*270 | ||
| Packing (W*H*D) | mm | 895*600*355 | ||
| Net Weight (IDU/ODU) | Kg | 11.5 Kg /38 Kg | ||
| Refrigerant type | R32 | |||
| Refrigerant pipe | Liquid side | mm | 6.35 | |
| Gas side | mm | 12.7 | ||
| Refrigerant pipe length* | m | 3 | ||
The digital picture may slightly vary from the actual product for representation purpose.
